Loch Indaal
Gaelic Name:
N/A
Current Status:
Type:
Callsign:
Under Construction for CalMac
Steel MV
IMO:
MMSI:
Launched:
Acquired:
08/06/2024
Entered Service:
Disposed:
Details
Ordered By:
Cost:
Registered:
Launched by:
Named after:
Caledonian Maritime Assets Limited (CMAL)
£45.5m
Glasgow
Loch Indaal is a sea loch on Islay, the southernmost island of the Hebrides.
Dimensions
Length:
94.8m
Draught:
Breadth:
4m
18.7m
Gross Tonnage:
3830
Technical
Builders:
Cemre Shipyard, Turkey
Yard No:
1093
Engine Builders:
2x Voith Schneiders (stern), 2x Bow Thrusters
Machinery:
Speed:
16.5
Hoist & Lifts:
Remarks:
Fitted with two mezzanine decks
Second of four sister ships ordered
Capacities
Passengers:
Cars:
Crew:
Lifeboats:
450
107
27
Facilities
Route Timeline
Current, Last or Usual Route
Kennacraig - Port Ellen / Port Askaig
History
March 2022 saw the contract for two new ferries being awarded to the Cemre shipyard in Turkey. Unlike the previous contract for what would become the Glen Sannox and Glen Rosa, this contract made no mention of dual fuelling or LNG - a source of great difficulty with the ships being constructed at Port Glasgow.

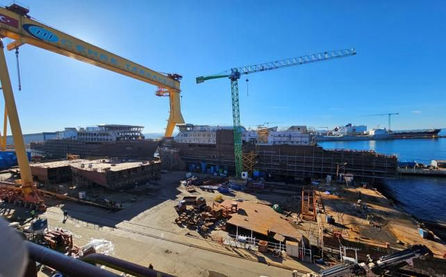

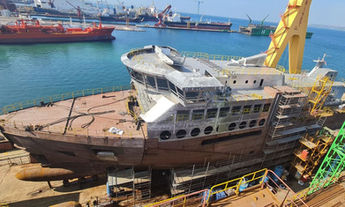

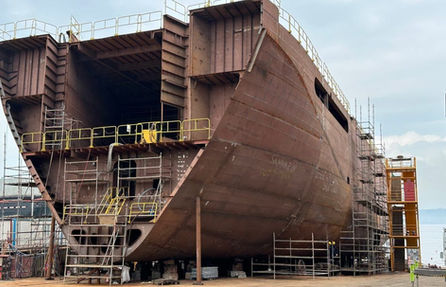

The second of what was to become known as the Islay Class began construction on 24th My 2023 when the keel was laid. Construction took place throughout the remainder of 2023 and into the spring of 2024 and the two ships grew on adjacent slipways.
Names were chosen for the two new Islay vessels - the first being given the ultra-unimaginative name Isle of Islay, with the second being allocated the name Loch Indaal. She was launched bow first on 8th June 2024 in a departure from established practice.
Drawings produced to date suggest the passenger accessible spaces and crew accommodation will be located on two decks, with an open deck accessible at the stern and between the funnels. Sadly there is no forward deck space like there is on Hebridean Isles and Isle of Arran. The car deck is open plan layout with 5 lanes of cars or 4 lanes of commercials, and will also incorporate two mezzanine decks, one for one lane of cars, the other for two lanes, similar to Loch Seaforth. The bow will be formed of clam shell doors, as has become the norm, with the bow ramp located behind. The stern ramp is of the same design found on Glen Sannox and Glen Rosa, with the outward end section being adjustable offset port or starboard to suit the linkspan position.
We will update this profile as and when Loch Indaal is delivered and enters service, to include a description of her internal layout and facilities to be found onboard.
